CNC Machine Stone Granite Marble Diamond Router Engrave Bits Carve Tools

Dialead Vacuum Brazed Diamond Router Engrave Bits adpot multilayer smelting technology and high quality diamond powder. Dialead Stone Router Engrave Tools can be suitable for different stone materials
  • item no.:

    REB-000
  • lead time:

    7 days upon receipt of deposit
  • product orgin:

    China
  • brand:

    DIALEAD
  • shipping port:

    Any port in China
  • payment:

    30% TT in advance and balance paid before shi
  • color:

    Different colours are available
  • description

Product Item

CNC Machine Vacuum Brazed Stone Granite Marble Diamond Router Engrave Bits Carve Tools

Description


Dialead Vacuum Brazed Diamond Router Engrave Bits adpots advanced vacuum brazed and smelting technology. Made by high quality diamond powder, it is suitable for marble , bluestone , artificial stone, ceramic and other material.

Type Item No D/mm d/mm l/mm L/mm
Conical Head Type 6-3-12 6 3 12 70
Conical Head Type
6-3-20 6 3 20 70
Conical Head Type
8-3/4-30 8 3/4 30 90
Conical Head Type
10-4/6/8-30 10 4/6 30 90
Conical Head Type
10-4/6/8-40 10 4/6 40 90
Conical Head Type(Columnar Relif)
10-4/6-60 10 4/6 60 120
Conical Head Type(Columnar Relif)
10-4/6-80 10 4/6 80 120
Conical Head Type(Columnar Relif)
10-4/6-100 10 4/6 100 160
Conical Head Type(Columnar Relif)
12-4/6-80 12 4/6 80 120
Conical Head Type(Columnar Relif)
12-4/6-100 12 4/6 100 160
Conical Head Type(Columnar Relif)
16-6/8-100 16 6/8 100 169
Conical Head Type(Columnar Relif)
16-6/8-120 16 6/8 120 180
Conical Head Type(Columnar Relif)
16-6/8-150 16 6/8 150 230
Flat Head Type 6-p-12 6 6 12 70
Flat Head Type
6-p-20 6 6 20 70
Flat Head Type
8-p-20 8 8 20 90
Flat Head Type
10-p-20 10 10 20 90
Flat Head Type
10-p-30 10 10 30 90
Mushroom Head Type 6-10-90 6 10 90 degree 50
Mushroom Head Type
8-20-90 8 20 90 degree 50
Mushroom Head Type
8-20-120 8 20 120 degree 50

Features

1, High Sharpness and Long Lifespan

2, Multilayer smelting technology

3, Precise Cutting

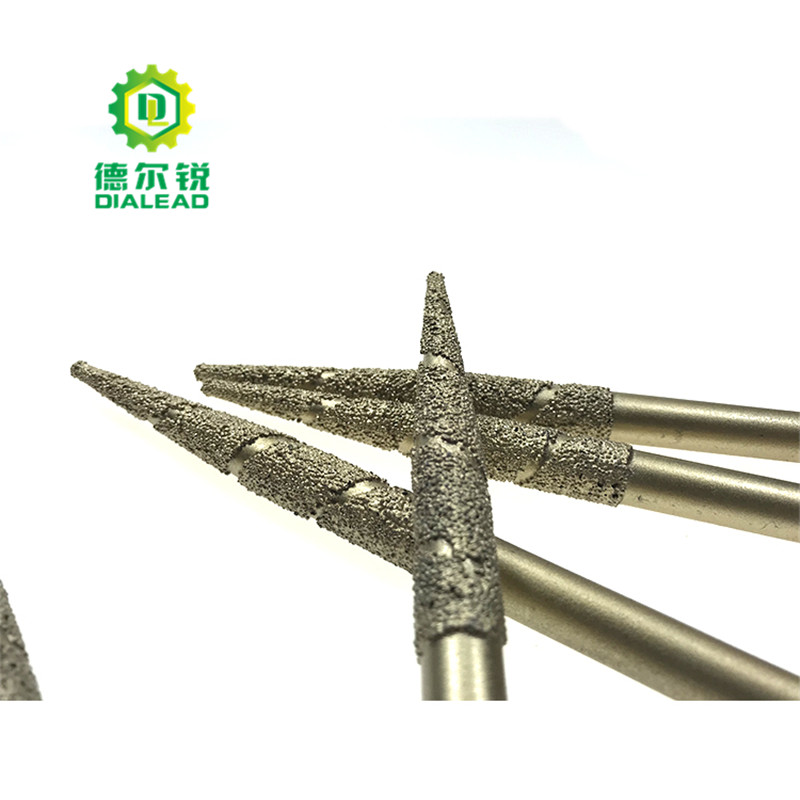

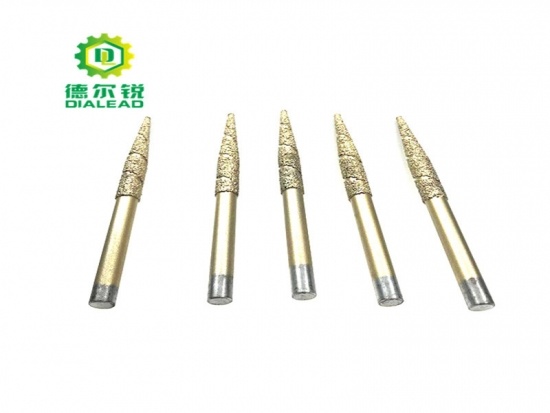

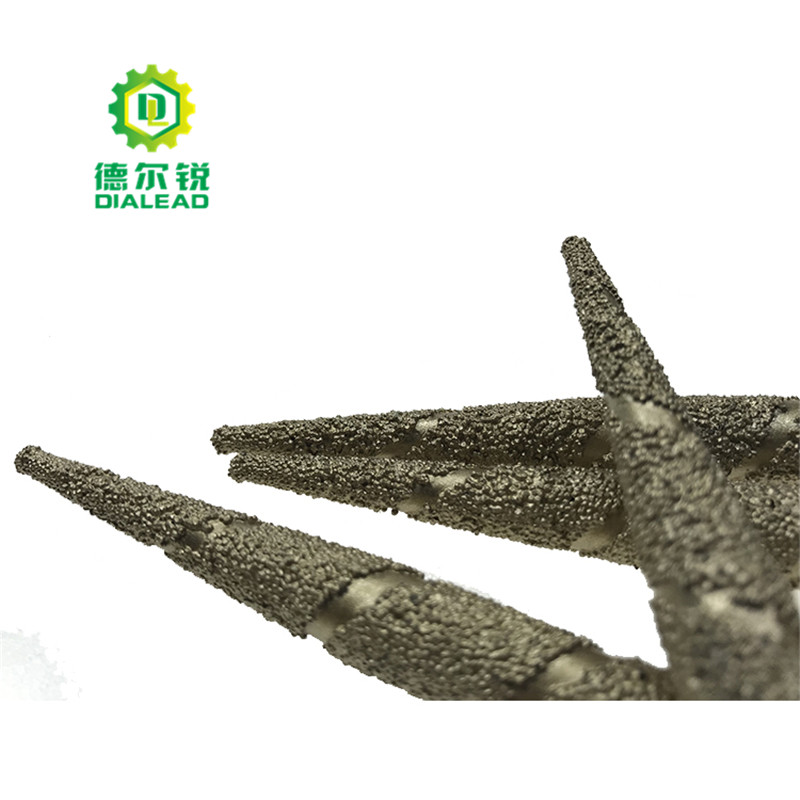

Detailed Image

Stone carve tools

Packing and Shipping

stone router mill bitsMarble CNC Tools

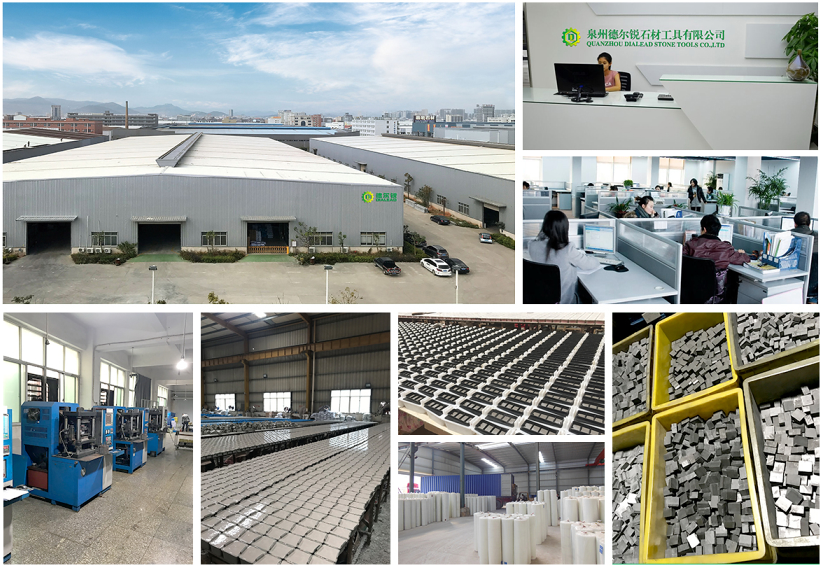

Factory Tour

Dialead Stone Tools
